Setting up a Local Network with NCTL

NCTL stands for network/node control. NCTL is a CLI application you can use to set up and control multiple local Casper nodes during development. Many developers wish to spin up relatively small test networks to localize their testing before deploying to the blockchain. Adopting a standardized approach in the community is also helpful for troubleshooting and reporting issues.

Prerequisites

1. You have completed the Getting Started section, which shows you how to install your development environment, including tools like CMake (version 3.1.4+), Cargo, and Rust.
2. Make sure you have Python 3 installed if your operating system does not include Python.
3. To run NCTL, you will also need the bash shell.

Installing a Virtual Environment

We will show you how to run NCTL in a virtual environment. If you want to run NCTL at the system level, you can, but we recommend that you only do that if you are sure you know what you are doing.

First, you will need to install a set of tools required for running NCTL.

Step 1. The first tool you will need is pip, a package manager for Python. Pip comes with the Python 3 installation from python.org, but if you do not have it already, follow the steps below or the full installation instructions.

Instructions for MacOS:

$ curl https://bootstrap.pypa.io/get-pip.py -o get-pip.py
$ python3 get-pip.py

Instructions for Linux:

$ sudo apt install python3-pip

Step 2. Install pkg-config, a program used to compile and link against one or more libraries.

Instructions for MacOS:

$ brew install pkg-config

Instructions for Linux:

$ sudo apt install pkg-config

Step 3. Install either libssl-dev (Linux) or openssl (MacOS), which are toolkits for the Transport Layer Security (TLS) and Secure Sockets Layer (SSL) protocols. They also serve as general-purpose cryptography libraries.

Instructions for MacOS:

$ brew install openssl

Instructions for Linux:

$ sudo apt install libssl-dev

Step 4. You will also need the gcc and g++ compilers, which usually come as part of developer command-line tools (versions 7.5.0 at the time of this writing).

Instructions for MacOS:

$ xcode-select --install
$ gcc --version
$ g++ --version

Instructions for Linux:

$ sudo apt install build-essential
$ gcc --version
$ g++ --version

Step 5. Create and activate a new virtual environment. Commands applicable to the virtual environment will be prefixed with (env). Run the following commands to set it up.

Instructions for MacOS and Linux:

$ python3 -m venv env
$ source env/bin/activate
(env) $

Step 6. Inside the virtual environment, upgrade pip to the latest version.

Instructions for MacOS and Linux:

(env) $ pip install --upgrade pip

Step 7. Install jq, a command-line JSON processor.

Instructions for MacOS and Linux:

(env) $ pip install jq

Step 8. Install supervisor, a cross-platform process manager.

Instructions for MacOS and Linux:

(env) $ pip install supervisor

Step 9. Install toml, a configuration file parser.

Instructions for MacOS and Linux:

(env) $ pip install toml

Setting up the Network

You are now ready to set up and run your local network of Casper nodes.

note

NCTL will not work properly if the following repositories are downloaded via Github's web GUI. To ensure functionality, use the CLI git clone command.

Step 10. Clone the casper-nctl software in your working directory, referenced here as WORKING_DIRECTORY. Very Important!!! Choose a short path for your working directory; otherwise, the NCTL tool will report that the path is too long.

Instructions for MacOS and Linux:

$ cd <WORKING_DIRECTORY>
$ git clone https://github.com/casper-network/casper-nctl

Step 11. Clone the casper-node software in your working directory.

Instructions for MacOS and Linux:

$ git clone https://github.com/casper-network/casper-node

Step 12. Clone the casper-client-rs software in your working directory.

Instructions for MacOS and Linux:

$ git clone https://github.com/casper-ecosystem/casper-client-rs

Step 13. Clone the casper-node-launcher software in your working directory.

Instructions for MacOS and Linux:

$ git clone https://github.com/casper-network/casper-node-launcher

note

Assuming you have set up a small local network, you can speed up the process of creating new blocks with NCTL by reducing the deploy_delay in your local config.toml before running nctl-assets-setup.

Step 14. Clone the casper-sidecar software in your working directory. As part of Casper's Condor release, the sidecar is now necessary to interact with a Casper network and will handle any API requests.

Instructions for MacOS and Linux:

$ git clone https://github.com/casper-network/casper-sidecar

Step 15. You may need to extend your .bashrc file to make NCTL commands available from the terminal session. You can do so using the following commands:

cd YOUR_WORKING_DIRECTORY/casper-nctl

cat >> $HOME/.bashrc <<- EOM

# ----------------------------------------------------------------------
# CASPER - NCTL
# ----------------------------------------------------------------------

# Activate NCTL shell.
. $(pwd)/activate

EOM

Followed by refreshing the bash session:

. $HOME/.bashrc

Step 16. Activate the NCTL environment with the following command.

Instructions for MacOS and Linux:

$ source casper-node/utils/nctl/activate

Step 17. Compile the NCTL binary scripts. The following command compiles both the casper-node and the casper-client in release mode.

Instructions for MacOS and Linux:

$ nctl-compile

note

The compilation takes some time, so it might be a perfect moment to get some coffee.

Step 18. Set up all the assets required to run a local network, including binaries, chainspec, config, faucet, and keys. Also, spin up the network right after. The default network will have 10 nodes and 10 instances of the sidecar, with 5 active nodes and sidecars and 5 inactive nodes and sidecars.

Instructions for MacOS and Linux:

$ nctl-assets-setup && nctl-start

Once a network is up and running, you can control each node within the network and add new nodes to the network.

Several other NCTL commands are available via aliases for execution from within a terminal session. All such commands are prefixed by nctl- and allow you to perform various tasks.

You should see the new directory utils/nctl/assets, with the following structure.

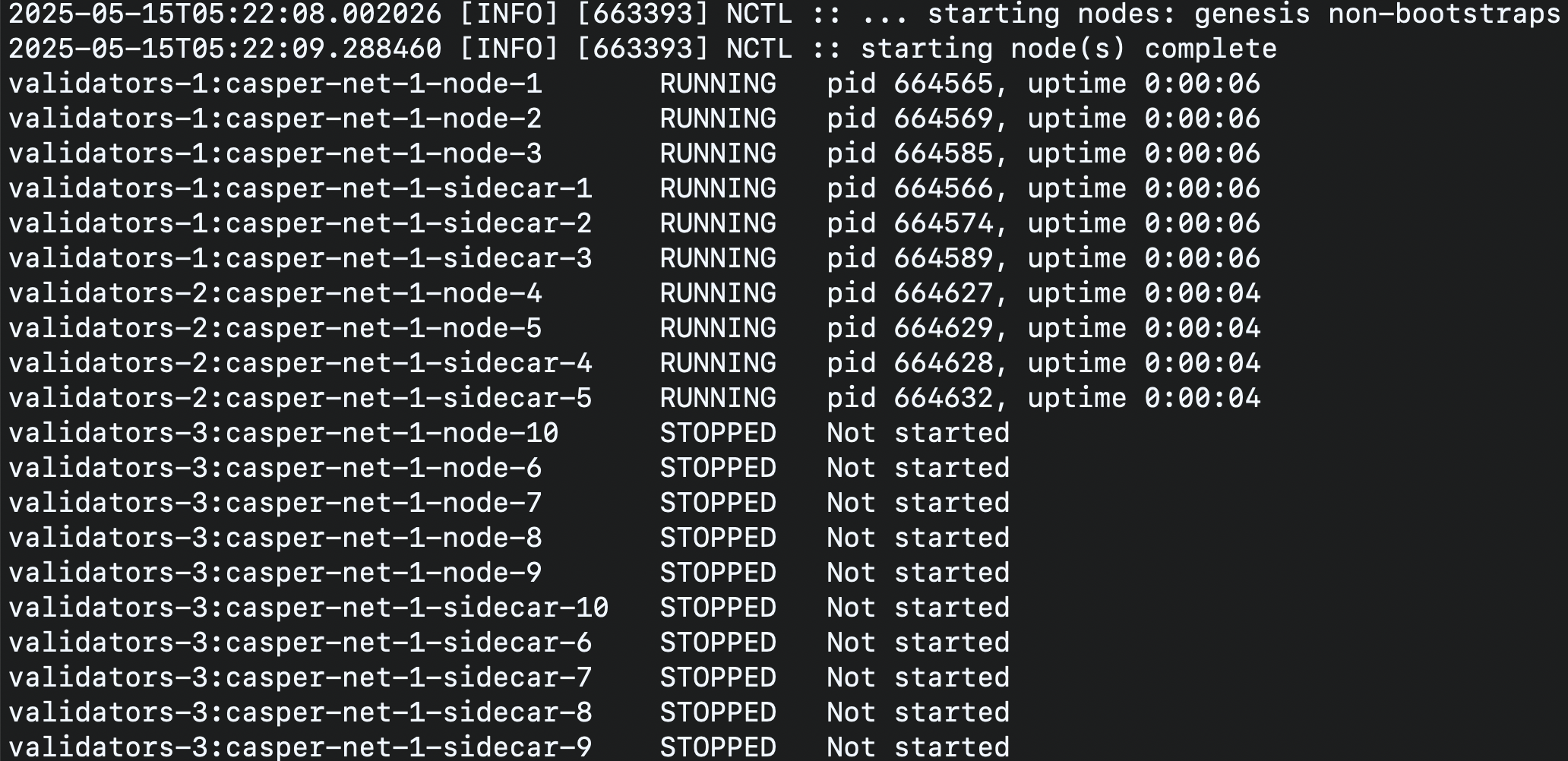

Here is the command line output you would expect.

Stopping the Network

Step 19. Although not necessary, you can stop and clean the NCTL setup with the following commands.

Instructions for MacOS and Linux:

$ nctl-stop
$ nctl-clean

Next Steps

1. Explore the various NCTL commands.
2. Explore the NCTL usage guide.
